Note ! ! !

The Autel MaxiIM IM508 Key Programmer has been discontinued and unavailable, We recommend you it's latest upgraded version - Autel MaxiIM IM508S.

Autel MaxiIM IM508S 👉 https://www.diagmart.com/products/2-years-update-autel-maxiim-im508s-professional-key-fob-programming-tool?variant=41268407828539

[discontinued]

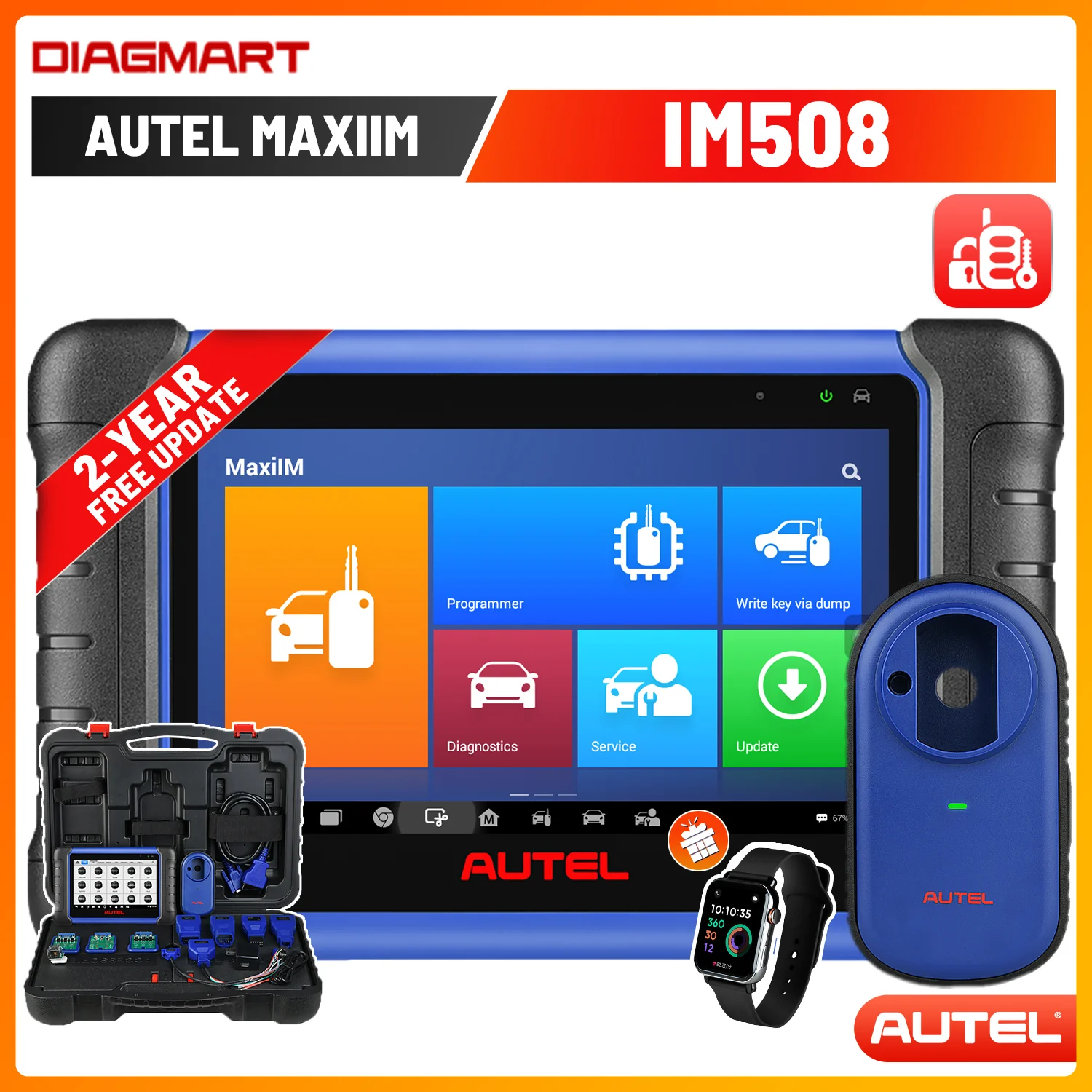

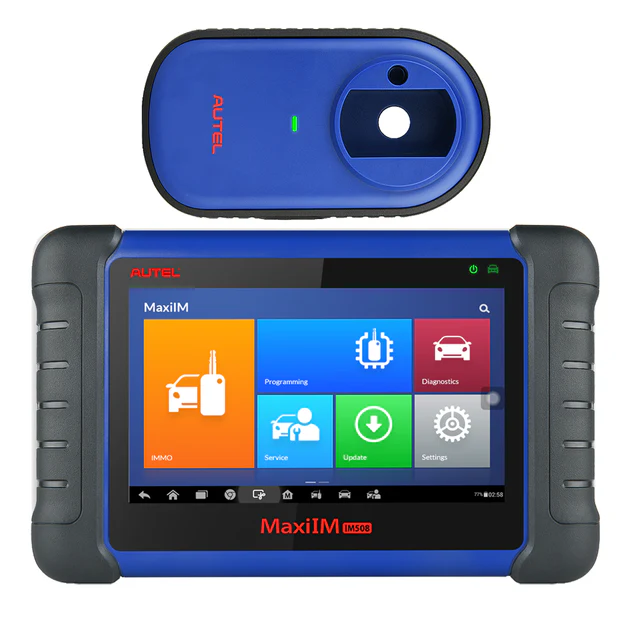

Autel MaxiIM IM508 Key Programming Tool

Autel MaxiIM IM508 Key Programming Tool combines comprehensive Key Programming, OE-Level All Systems Diagnositc and Special Reset Service functions, featuring various IMMO functions like Read PIN/CS(All Key Lost), Key Generation, Key Learning, Remote Learning and Add New Key, All Keys Lost, IMMO ECU Reset.

Top Reasons to Choose Autel MaxiIM IM508

No IP Limitation- No IP Restriction, You can use IM508 in your country without IP Limitations.
Advanced IMMO Function - It can perform IMMO ECU reset/adaptation, refresh/coding, read PIN/CS (All Key Lost), key generation, key learning, remote learning.
Key Programming - Autel MaxiIM IM508 can access the key chip, read, retrieve and write key information
OE-Level Diagnosis - This Autel IMMO & Diagnostic tool IM508 works well on 80+ car makes and models worldwide
28+ Useful Hot Service - Autel IM508 has a stunning collection of practical maintenance functions, including but not limited to Oil Reset, EPB, BMS, SAS, ABS Bleed, etc.
Bi-Directional Control - MaxiIM IM508 supports active test diagnostic function.
Multi-Language Supported - Autel IM508 supports English / Portuguese / Germany / Japanese / French / Spanish etc.
2-Year Free Update Service - The IM508 purchased after August 2022 comes with a two-year free software update online. When the free update expires, you can purchase the update service. Even if you don't update, the device still can be used as normal.

Advanced IMMO Functions & Key Programming

This IMMO & Key Fob Programming tool IM508 can read the immobilizer pin codes and password directly from the vehicle and store the information to do key learning for the newly programmed keys.

It comes with Smart Mode and Expert Mode to guide both professional technicians and home mechanics performing IMMO-related functions.

Smart Mode: Accesses to a function menu where each function is configured as a smart guide system.
Expert Mode: Accesses to a function menu where each function is separated from each other.

IM508 Working with XP200

With Autel XP200 Key Programmer, Autel IM508 Key Programming tool can perform accessing the key chip, read, retrieve and write key information, EEPROM read & write and basic MCU read & write, as well as other key related functions. The Programming application requires connection between the tablet and the XP200 Key Programmer, and no vehicle connection is required.

IM508 IMMO Functions

Autel MaxiIM IM508 advanced key programmer scan tool can perform comprehensive IMMO functions including Reading PIN/CS(All Key Lost), Key Generation, Key Learning, Remote Learning, Benz FEM/BDC Key Learning/ECU Adaptation, BMW CAS4/3/2 Key Learning, VW/Audi/Skoda/Seat IMMO III/IV/V Add Key, All Key Lost, IMMO ECU Reset/Adaptation/Refresh/Coding.

Note: When connected to XP400 key programmer, IM508 will be able to support Benz 3rd Generation IMMO, BMW CAS4 Key Learning and VW/Audi MQB(VDD & JCI) Add Key, IMMO V A4/A5/Q5 2015+ Key Learnin.

MaxiIM IM508 Work With XP400 Pro

Advanced Key Programming Functions

Remote Learning
Read PIN(All Key Lost)
Write Key Via Dump
Auto Detect Make System
IMMO ECU Refresh / Coding / Reset / Adaption
Audi, VW, BMW Key Learning
Support 95% Vehicle Model After 2004

Special Vehicle Model for Key Programming

BMW EWS4-FEM/BDC IMMO
Add Key
All Key Lost via OBD (Except G Chassis)
Benz 3rd Generation IMMO
2015-2019 Jaguar Land Rover Write Key Via Dump
Volvo Smart Key/Fobik Smart Key Learning

im508 with xp400 pro to extend its functions

MaxiIM IM508 with Full-System Diagnosis & Active Test

Autel IM508 diagnostic tool can scan all the vehicle modules, including but not limited to PCM, ECM, EPS, PDM, BCM, TPM, SCCM and covers prime systems such as ABS, SRS, Engine Systems, Transmission systems, Brake systems, etc.

MaxiIM IM508 with 28+ Most Commonly Used Maintenance Services

Autel IM508 key programmer diagnostic scanner has a stunning collection of practical maintenance functions, including but not limited to Oil Reset, EPB, BMS, SAS, ABS Bleed, etc.

Wide Vehicle Coverage

Autel IM508 key programmer is compatible with 80+ US, Asian, and European makes and models such as Toyota, Honda, Infiniti, Kia, Nissan, Subaru, Suzuki, Mazda, Lexus, Dodge, Bentley, Seat, Skoda, and more.

MaxiIM IM508 Extended Functions

MaxiIM IM508 Can Work with APB112 & G-BOX2 & IMKPA

Autel APB112 - Smart Key Emulator

Autel APB112 is compatible with XP400 Pro for 4D transponder functions, it must be used with an Autel Diagnostic tool.

Smart Key password calculation(Hyundai/Kia 46)
46, 4D data collection, 46 chip simulation
Toyota 4D(94/D4, 98) smart key emulation
Toyota H(88/A8, A9, 39) smart key emulation
Toyota/Lexus smart key all-key-lost
Collects data from ignition coil
Chip Decoding(Hyundai 46)
Identify Ignition coil troubles
Decode vehicle key chip data
Simulate vehicle key chip(ex - 4D chip)

Autel GBOX 2 - Adapter

The Autel G-BOX2 is an adapter (compatible with Autel XP400 PRO) used to program keys for Mercedes-Benz DAS3 CAN EIS/EXS (All Keys Lost), Mercedes-Benz All Keys Lost Password Calculations and DME/DDE ISN Reading & Writing in Boot Mode or Bench Method for BMW. This G-Box2 contains cables, fuse connector, and CAN line connectors.

IMKPA - Key Programming Adapter Kit

The IMKPA is a Key Programming Adapter Kit, compatible with the XP400Pro Key & Chip Programmer. Includes 12 adapters for the XP400Pro that enable Read/Write/Erase for Mercedes Benz ESL_W209 / W906 Data, for Mercedes Benz NEC Key Learning, BMW EWS3 Key Learning and for Volkswagen/AUDI/BMW/Benz Key Unlock. Compatible with the IM608 and IM508 with XP400Pro.

Autel IM508 Package Includes:

1 x IM508 Main Unit
1 x XP200 Key Programmer
1 x Main Cable
1 x Mini USB Cable
1 x USB External Power Adapter
1 x AAC001(MED17 Cable)
1 x APB001(EEPROM Adapter)
1 x APB002(68HC908 Adapter)
1 x APA002(EEPROM Socket)
1 x APA001(EEPROM Clamp Integrated MC9S12 Cable)
1 x KIA-10
1 x KIA-20
1 x HONDA-3
1 x MAZDA-17
1 x Quick Reference Guide
1 x Carrying Case

MaxiIM IM508 Unboxing

Autel MaxiIM IM508 Specifications:

Operating System	Android^TM 4.4.4
Processor	Cortex-A9 processor (1.6 GHz)
Memory	32GB
Display	7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity	Mini USB 2.0 USB 2.0 Wi-Fi Micro SD card (supports up to 32GB)
Sensors	Ambient light sensor for brightness auto changing
Audio Input / Output	Input: N/A Output: buzzer
Power and Battery	3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply
Tested Battery Life	Around 4.5 hours of continuous use
Battery Charging Input	5 V/1.5 A
Power Consumption	500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp.	0 to 50°C (32 to 122°F)
Storage Temp.	-20 to 60°C (-4 to 140°F)
Operating Humidity	5% - 95% non-condensing
Net Weight	788 g (2.42 lb.)
Download	Autel MaxiIM IM508 User Manual
Update Service	2-Year Free Software Update

Autel MaxiIM Comparison Chart

Certificate
