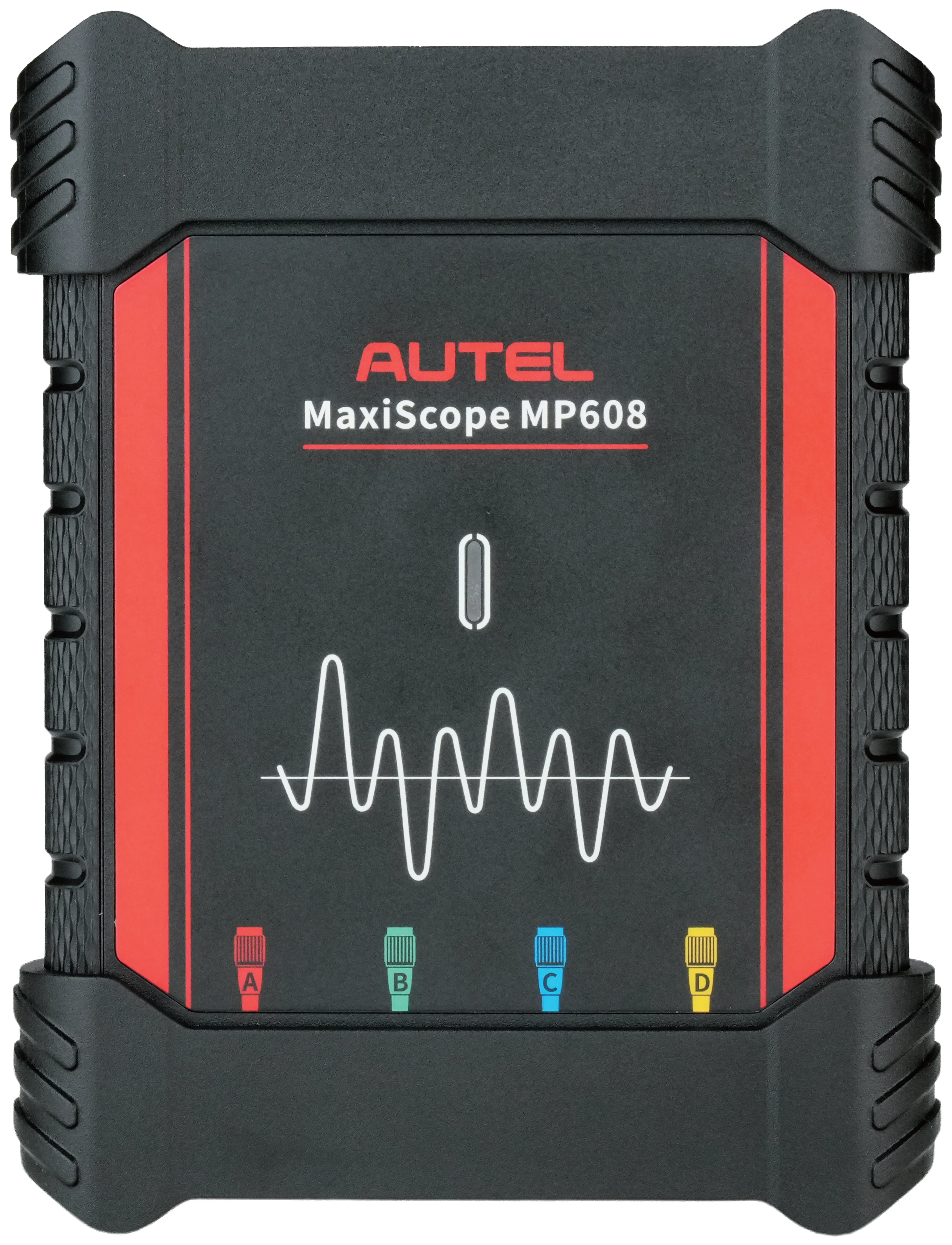

Autel MaxiScope MP608 AI-Powered Oscilloscope for Faster and More Accurate Vehicle Diagnostics

Autel MaxiScope MP608 4-Channel Oscilloscope

The Autel MaxiScope MP608 is a portable, USB-powered, 4-channel automotive oscilloscope that transforms your Autel next-generation MaxiSys tablet into a professional diagnostic tool. With 12-bit vertical resolution, one-click setup, and support for modern protocols like CAN FD/FlexRay, the Autel MaxiScope MP608 delivers precise waveform analysis from an intuitive interface.

Compatible with Autel tablet scanners

The Autel Tablets compatible with the MP608 are MaxiSys MS909S2/ MS909/ MS909EV/ MS909CV/ MS906 MAX/ MS908S Pro II/ MS906 Pro/ MS906 Pro-TS/ Elite II Pro, MaxiCOM Ultra Lite S, MaxiIM IM608S II/ IM608 Pro II

Autel MaxiScope MP608 Features

1. Professional Diagnostics - Capture More. Diagnose with Confidence.

• ±1% Measurement Accuracy
• 12-Bit Vertical Resolution
• Trigger Actions for Intermittent Fault Capture
• Advanced Measurement Event Table

2. Simplified Operation - Make Advanced Diagnostics Accessible.

• AI-Generated Math Channel Formulas
• AI-Generated Probe Parameters
• Built-in Automotive Case Library

3. Advanced Visualization - See More. Understand Faster.

• Oscilloscope Mode
• Spectrum Mode
• XY Mode
• Simultaneous Multi-View Display

4. Connected Workflow - Turn Every Test into a Valuable Asset.

• Work-Order-Based Management
• Cloud Synchronization
• Waveform Notes & Tags

5. Tablet1 Mobility, PC-Level Diagnostics - Work Anywhere. Analyze Everywhere.

• Tablet & PC Support
• Mobile Testing
• Advanced PC Analysis

Specifications

Item	Description
Channels	4
Bandwidth	200MHz
Maximum Sample Rate	1 or 2 channels: 80 MS/s* 3 or 4 channels: 20 MS/s* * MS/s = mega samples per second 1) Select arbitrary one channel, the maximum sample rate is 80 MS/s. 2) Select two channels (AC, BC, AD, or BD), the maximum sample rate is also 80 MS/s. 3) Select two channels (AB/CD) or more than three channels, the maximum sample rate is 20 MS/s.
Input Ranges (Full Scale)	±50 mV to ±200 V
Sensitivity	10 mV/div to 40 V/div
Input Coupling	AC/DC
Input Impedance	1 MΩ in parallel with 25 pF
Vertical Resolution	12 bits
Buffer Memory	32M samples shared among active channels
Time Base Ranges	100 ns/div to 1000 s/div
Connection	USB 2.0
DC Accuracy	±1%
Storage Humidity Range	5 to 95 % RH, non-condensing

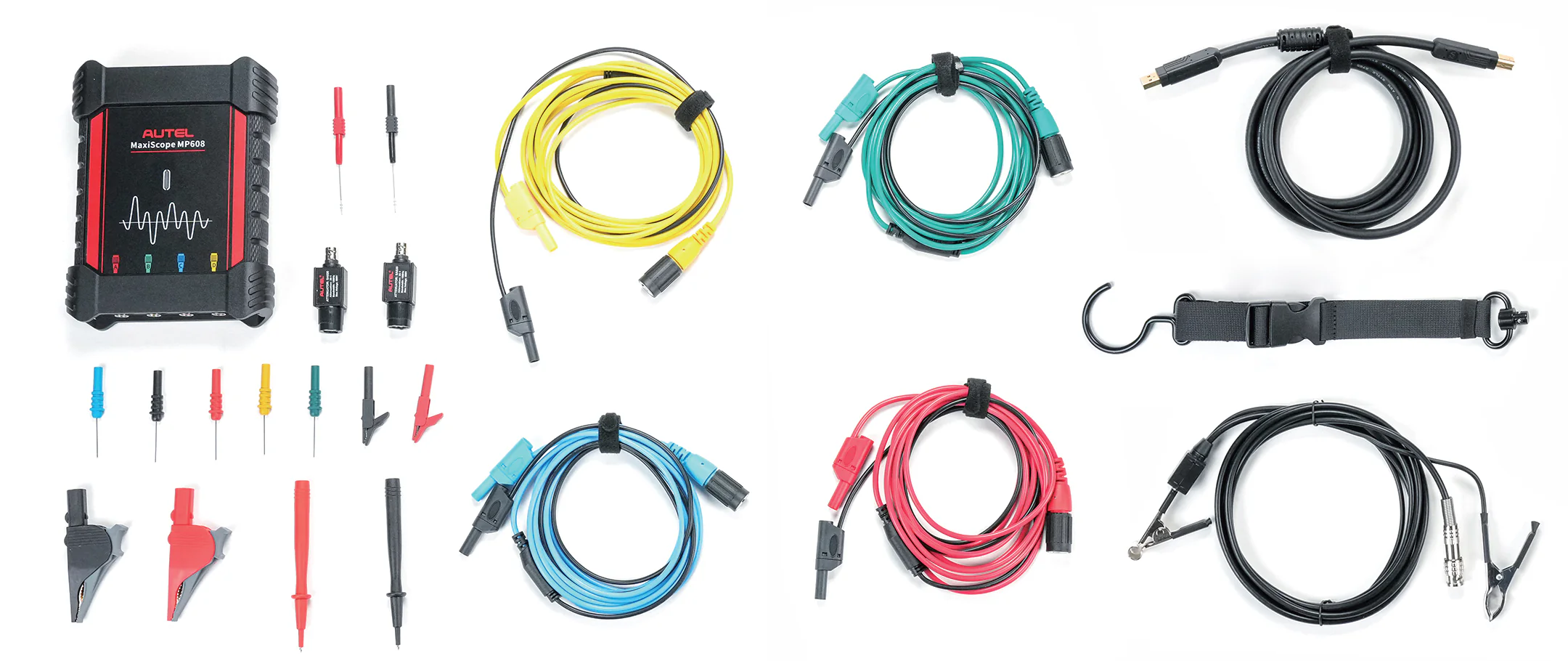

Packing List

• MP608 Main Unit
• Secondary Ignition Pickup
• USB 2.0 Cable V2
• 2PCS Attenuator 20:1
• 1x2 PCS Large Dolphin Clip - Red/Black
• 1x2 PCS Small Alligator Clip - Red/Black
• 1x4 PCS Scope Test Lead
• 1x2 PCS Multimeter Probe - Red/Black
• 1x5 PCS Back-pinning Probe - Red/Green/Blue/Yellow/Black
• 1x2 PCS Flexible Back-pinning Probe - Red/Black

Product Guides & Downloads

Autel MP608 User Manual (PDF)
